Maritime Container Measures - INCOTERMS 2020

MARITIME Container Measures

20' Dry Freight

Length Width Height
Exterior Dimension (mts.) 6,06 2,59 2,44
Interior Dimension (mts.) 5,90 2,35 2,39
Capacity (m3) 33
Weight (kg) 28.150

40' Dry Freight

Length Width Height
Exterior Dimension (mts.) 12,19 2,44 2,59
Interior Dimension (mts.) 12,03 2,35 2,39
Capacity (m3) 67,3
Weight (kg) 28.700

40' High Cube Dry Freight

Length Width Height
Exterior Dimension (mts.) 12,19 2,44 2,92
Interior Dimension (mts.) 12,03 2,35 2,69
Capacity (m3) 76,3
Weight (kg) 26.480

20' Open Top

Length Width Height
Exterior Dimension (mts.) 6,06 2,59 2,44
Interior Dimension (mts.) 5,89 2,35 2,35
Capacity (m3) 32,3
Weight (kg) 21.700

40' Open Top

Length Width Height
Exterior Dimension (mts.) 12,19 2,44 2,59
Interior Dimension (mts.) 12,03 2,35 2,39
Capacity (m3) 64
Weight (kg) 26.280

20' Tank

Length Width Height
Exterior Dimension (mts.) 6,06 2,44 2,59
Capacity (m3) 25,6
Weight (kg) 26.290

20' Reefer

Length Width Height
Exterior Dimension (mts.) 6,06 2,59 2,44
Interior Dimension (mts.) 5,55 2,30 2,32
Capacity (m3) 29
Weight (kg) 27.280

40' Reefer

Length Width Height
Exterior Dimension (mts.) 12,19 2,44 2,59
Interior Dimension (mts.) 11,56 2,29 2,25
Capacity (m3) 60
Weight (kg) 28.400

40' Flat Rack

Length Width Height
Exterior Dimension (mts.) 12,19 2,44 2,59
Interior Dimension (mts.) 11,95 2,41 1.96
Capacity (m3) --
Weight (kg) 40.050

Incoterms 2020

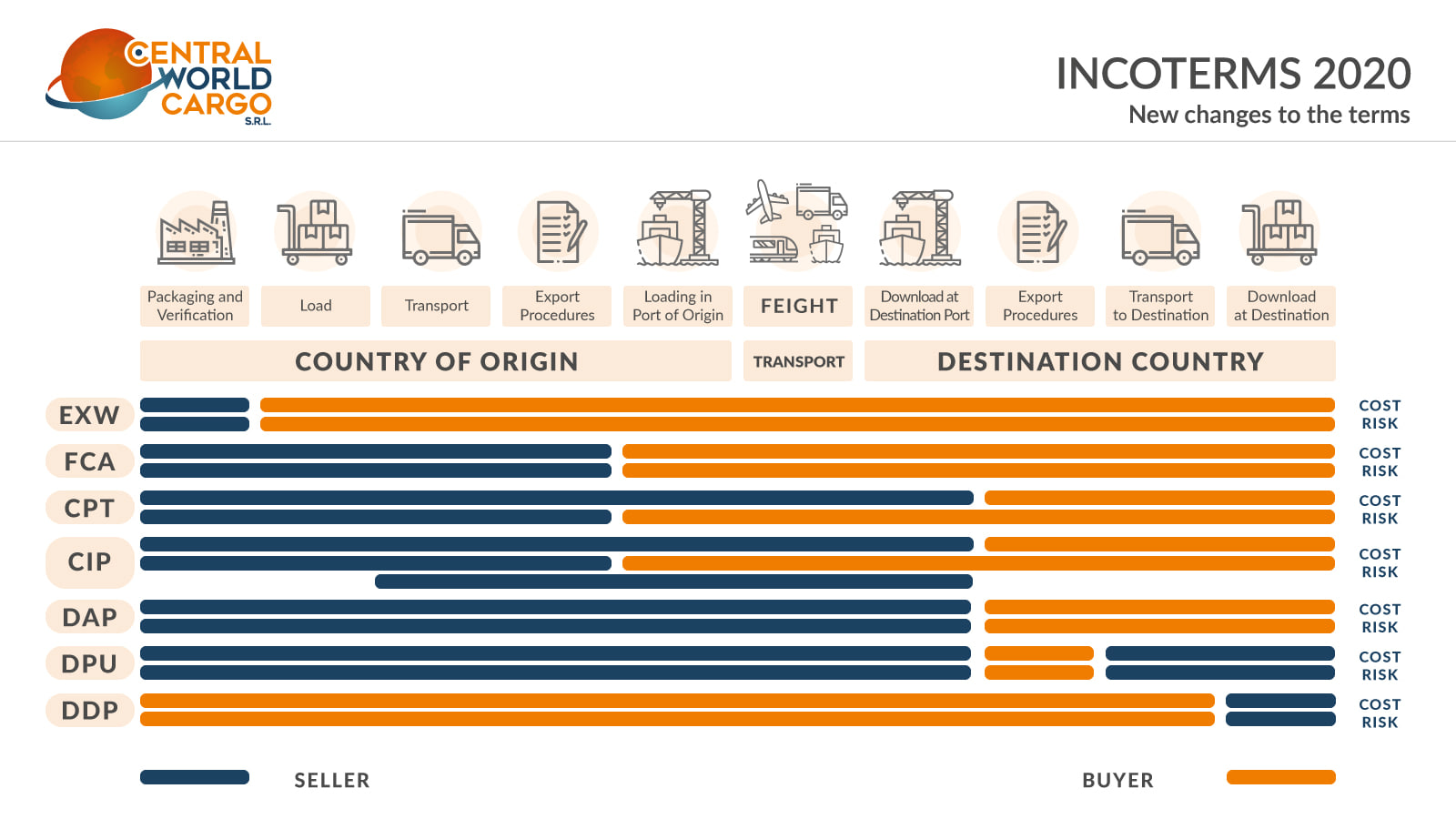

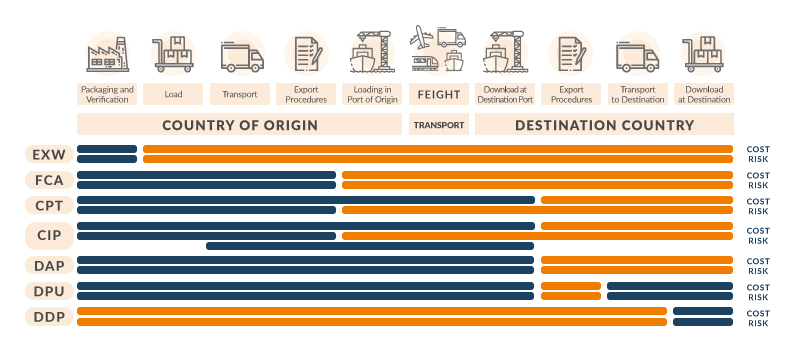

New changes to the terms

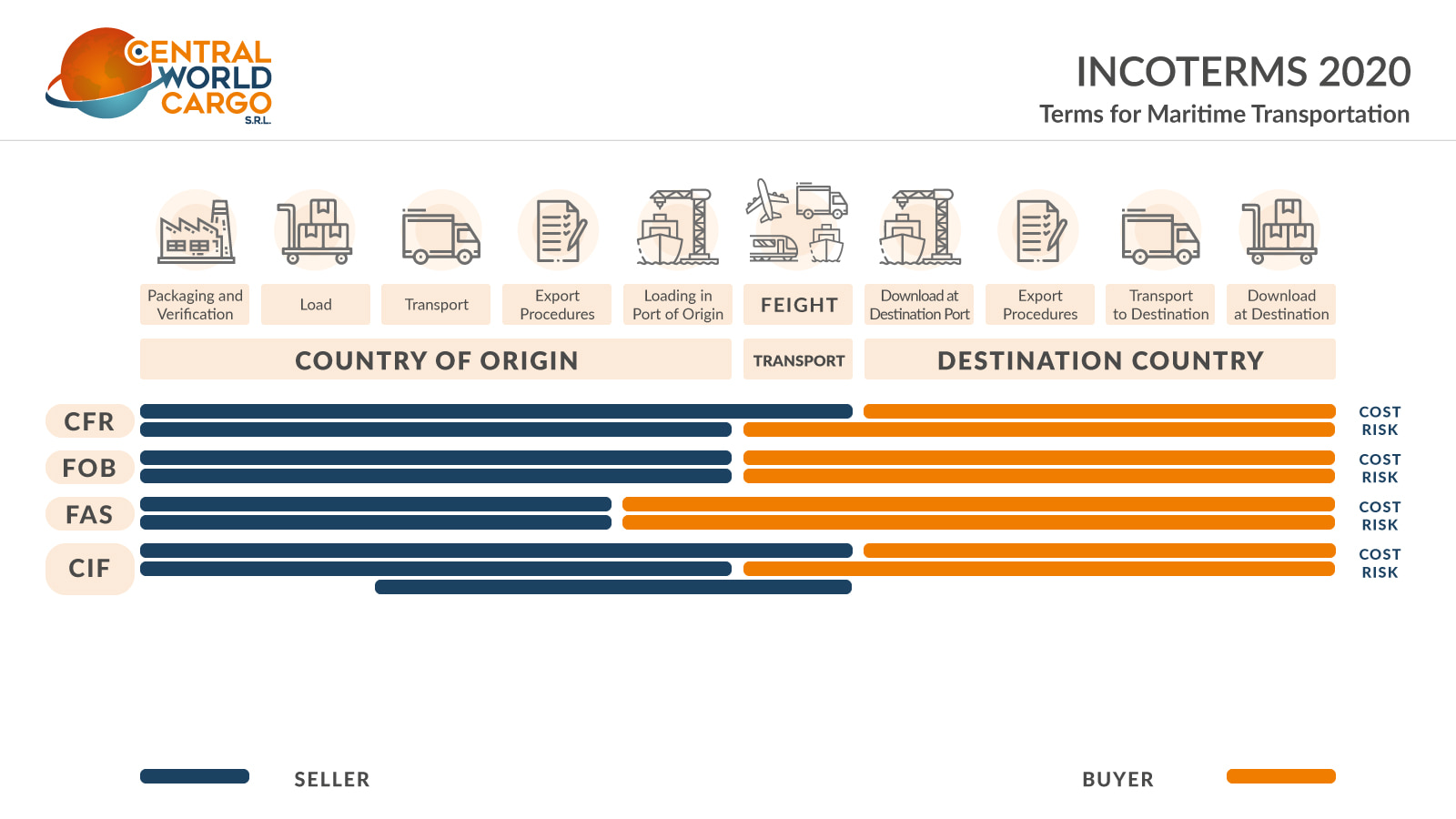

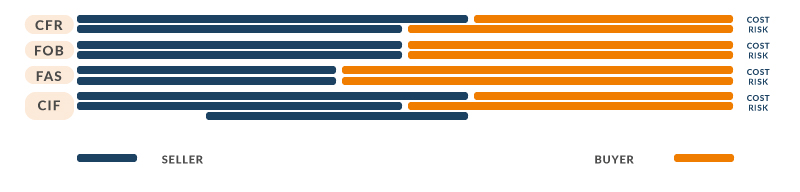

Terms for Maritime Transportation
